• Country
• Canada

• Manufacturer / Brand
• Seabreeze Electric Corporation; Toronto

• Year
• 1960 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 307856

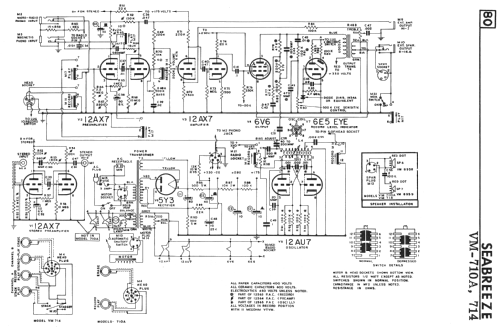

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7 12AX7 6V6 12AU7 6E5 5Y3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: VM-710A - Seabreeze Electric Corporation

• Notes

• The Seabreeze model VM-710A is a 6-tube magnetic tape recorder. Has a woofer and tweeter. With inputs for microphone and magnetic phono pickup. Has eye tube for recording level.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 51)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.

• Other Models

• Here you find 13 models, 9 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Seabreeze Electric Corporation; Toronto
