Silvertone Order= 57K 4619 Ch= 101.478
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1937–1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56399
-
- Brand: Silvertone

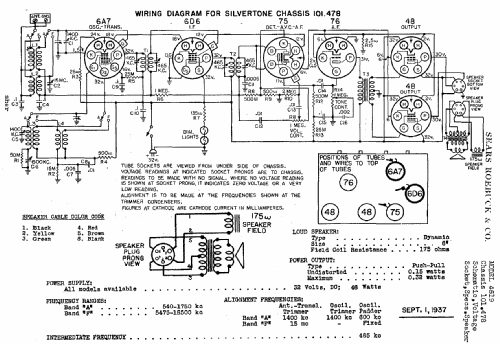

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Direct Current supply (DC) / 32 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 0.32 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57K 4619 Ch= 101.478 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 12.375 x 17.25 x 9.125 inch / 314 x 438 x 232 mm
- Notes
- Farm radio.
- Price in first year of sale
- 24.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Riders 9-43, 44
- Literature/Schematics (2)

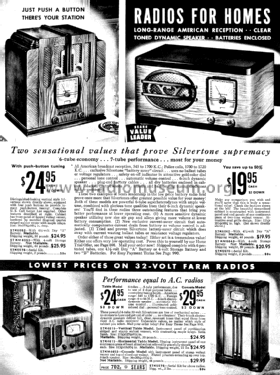

- The Sears Silvertone Catalogs 1930-1942 (page 148)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 177, Fall & Winter 1938/39, page 702.)
