• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56690

• • Brand: Silvertone

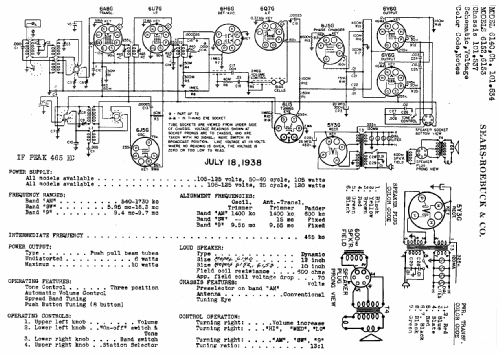

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6A8G 6J5G 6U7G 6H6G 6U5 6Q7G 6J5G 6V6G 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 6140 Ch= 101.534 - Sears, Roebuck & Co.; Chicago

• Shape
• Console with Push Buttons.

• External source of data
• Ernst Erb

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Literature/Schematics (1)
• Riders 10-82, 83, 84

• Other Models

• Here you find 5479 models, 3211 with images and 4185 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
