Silvertone 6496 Ch= 101.566 (-2A) to (-2E)
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 55505
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 100-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm
- Power out
- 1.3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 6496 Ch= 101.566 to - Sears, Roebuck & Co.; Chicago
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 24 x 26.75 x 14 inch / 610 x 679 x 356 mm
- Notes
-

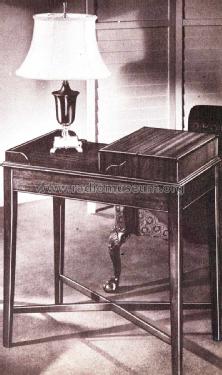

Built in loop antenna. Tuning Band 550 to 1600 kc. Gorgeous new styling in an 18th century mahogany end table. Hepplewhite and is purely a functional one.
- Price in first year of sale
- 24.00 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)
- Riders 11-85, 86
