Silvertone Order= 57DM 6346 (A) Ch= 101.584 to (-5)
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1939–1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 55543
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 100-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57DM 6346 Ch= 101.584 to - Sears, Roebuck & Co.; Chicago
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 33.25 x 34 x 17 inch / 845 x 864 x 432 mm
- Notes
-
5 Tuning Bands: American Broadcast Band 550 to 1700 kc; Police and Amateur Band 1.7 to 5 mc; Short Wave Band 6 to 18 mc and Spread Bands 9.4 to 9.8 and 11 to 12 mc.
- Price in first year of sale
- 77.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference

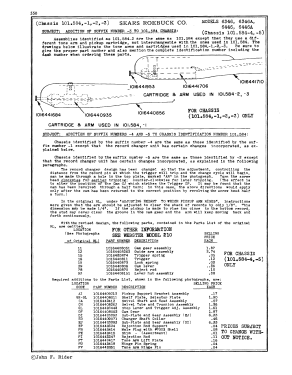

- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)
- Riders 11-71, 72, 73, 74, 75
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 169, 187, 198)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#179, 1939/40, page 925. #180, 1940, page 543. #181, 1940/41, page 620.)
