Silvertone Order= 57HM 5661 Ch= 101.633
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56528
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

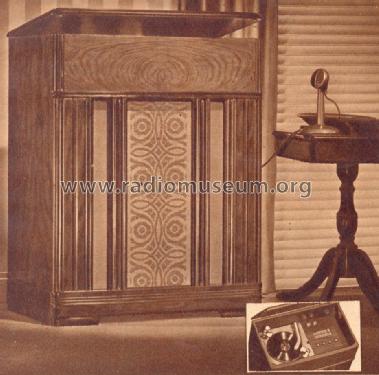

- Model: Silvertone Order= 57HM 5661 Ch= 101.633 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 26.5 x 34.5 x 16.375 inch / 673 x 876 x 416 mm
- Notes
-
Note: no recorder as erroneously stated in Stein's PWC, see also Silvertone model 5621. Built in loop antenna. Since the catalog Summer & Winter 1941/42 shows it, we have to cover this period.
- Price in first year of sale
- 48.88 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)
- Riders 12-44
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#182, Spring & Summer 1941, page 633.)
