• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56951

• • Brand: Silvertone

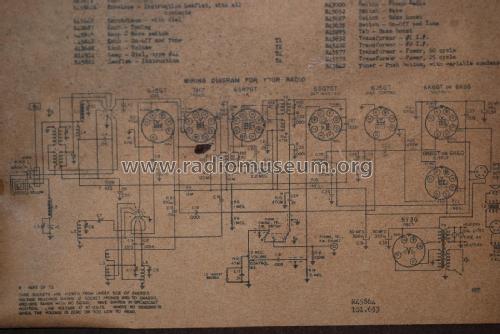

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6J5GT 7H7 6SK7GT 6SQ7GT 6J5GT 6K6GT or 6K6G 6K6GT or 6K6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 100-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 9 inch = 22.9 cm

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

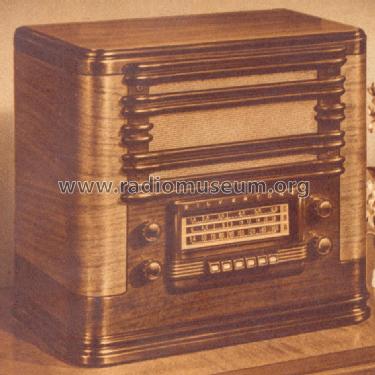

• Model: Silvertone Order= 57K 7038 Ch= 101.653 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 16 x 14.7 x 9 inch / 406 x 373 x 229 mm

• Notes

• Built in loop antenna.

• Price in first year of sale
• 32.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Riders 13-67, 68

• Literature/Schematics (2)
• The Sears Silvertone Catalogs 1930-1942 (page 219)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (#183, Fall & Winter 1941/42, page 839.)

• Literature/Schematics (4)
• Cathedral & Tombstone Radios (page 248.)
