Silvertone 6106A Ch= 101.662-4E

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56655
    • Brand: Silvertone

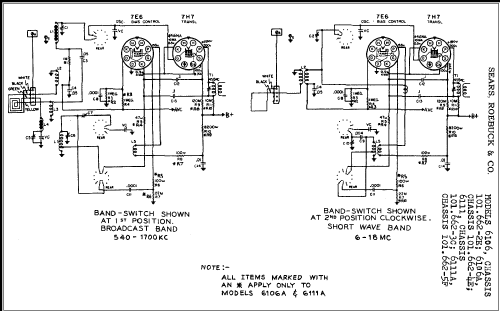

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.75 inch = 24.8 cm
  • Power out
  • 3.6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 6106A Ch= 101.662-4E - Sears, Roebuck & Co.; Chicago
  • Shape
  • Console with Push Buttons.
  • Notes
  • The Silvertone model 6106A has radio chassis 101.662-4E, Silvertone 6111A has radio chassis 101.662-5F. Some parts like resistors are added to the version A, for instance in the band-switch section. Short wave is 6-18 mc. We believe that model Silvertone 6105 from Sears, Roebuk & Co. and Silvertone 6111 come in different chassis versions like 6105A, 6105B, and at least also 6105D but these suffixes are perhaps not visible on certain documents or the set itself. According to Fotofact 467-26, date 11-48 the model family 6105 shares also a similar chassis with model Silvertone 6111 and 6106 family. The difference between 6105 and 6111 is the case: 6111 is wide with the changer besides the radio whereas 6105 features the record changer below the chassis. They are AC operated combinations "Automatic Phono" - 2 band receiver with self contained loop antenna and automatic tuning. Please distinguish when uploading pictures or schematics or data. See also similar Model 6105A.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 19 = 1949 and before
