• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57070

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1R5 1L4 1S5 1LB4 117Z3

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 105-125/ 67.5 & 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• from Radiomuseum.org

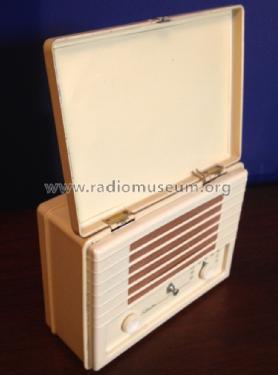

• Model: Silvertone 7165 Ch= 101.823 - Sears, Roebuck & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Sams photofact, set 10, folder 4610-29, date 12-46, features the Sears, Roebuck and Co model 7165 Ch= 101.823 and Ch= 101.823-1 and model 7166 Ch= 101.823A and 101.823-1A as the same schematic.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Literature/Schematics (1)

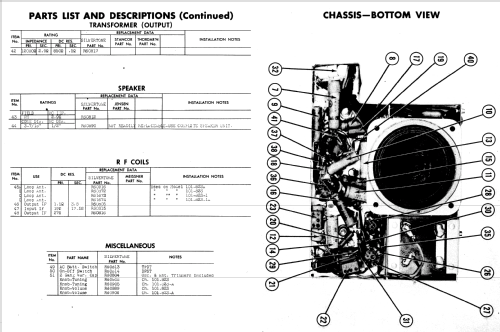

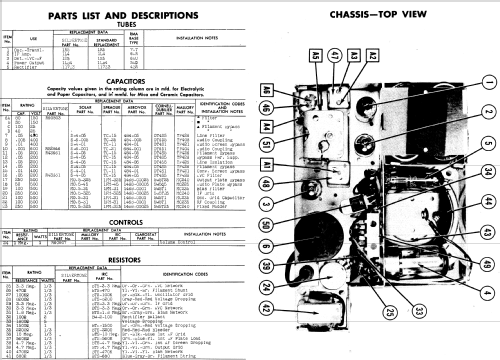

• Photofact Folder, Howard W. SAMS (Set 10, Folder 4610-29)
