Silvertone 8106 Ch= 101.833-1A
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57226
-
- Brand: Silvertone

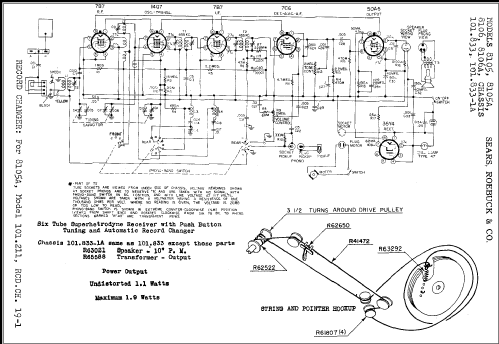

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Power out
- 1.1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 8106 Ch= 101.833-1A - Sears, Roebuck & Co.; Chicago
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 26.125 x 32.875 x 15.625 inch / 664 x 835 x 397 mm
- Notes
-
See also Silvertone model 8106 Ch= 101.833.
- Price in first year of sale
- 109.50 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#198, Spring & Summer 1949, page 626.)
