Silvertone 1038 Ch= 528.53940 Order=57H 1038
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1960/1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 88395
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 1038 Ch= 528.53940 Order=57H 1038 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 10 x 6 x 4 inch / 254 x 152 x 102 mm
- Notes
-

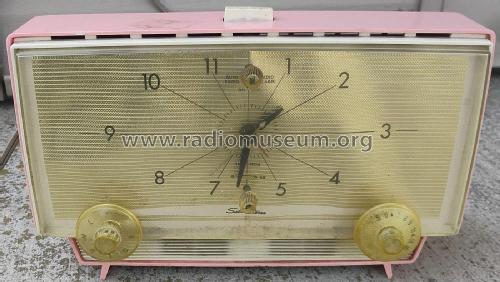

The Sears Silvertone 1038 is an AC operated 5 tube AM band clock radio. Has appliance outlet that is controlled by the clock. Cabinet color is Frosty Pink with gold color trim.
The following models use the same schematic and chassis:
Model Cabinet Color 1035 Brown 1036 Ivory 1037 Ice Blue 1038 Frosty Pink See details and summaries about Sears catalogs etc.
- Price in first year of sale
- 26.95 $
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 22, 1962
- Literature/Schematics (3)

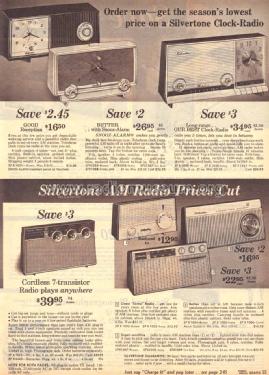

- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1960, page 1311.)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Winter 1961, page 93.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
