• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1951–1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 55752

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6AU6 6BE6 6BA6 6AU6 6AT6 6AL5 6W6GT 7Z4

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Power out
• 2.75 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 1059 Ch= 101.860 Order=57FM 1059 - Sears, Roebuck & Co.; Chicago

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 30.625 x 32.125 x 15.625 inch / 778 x 816 x 397 mm

• Notes

• Silvertone model 1059 is an AC operated AM-FM-phono combination superheterodyne receiver. Color= Limed Oak. Also available in Mahogany (model 1058), $ 169.95.

• Price in first year of sale
• 179.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 23 (last), covering up to 1954

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 12, 1952

• Literature/Schematics (2)

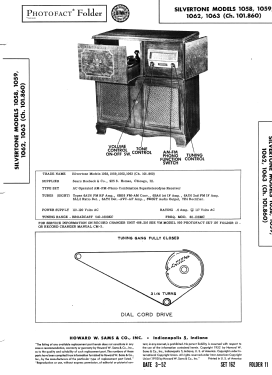

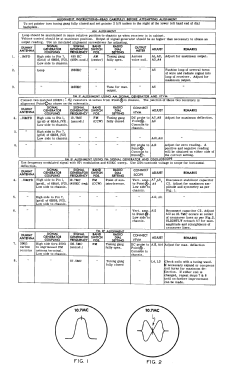

• Photofact Folder, Howard W. SAMS (Set 162, folder 11, dated 3-52)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (Mid-Season/Fall 1951, page 286. Fall & Winter 1952/53, page 860.)
