Silvertone 108 8-Tube Neutrodyne Order= 57DM 1080 or 1082

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1930/1931
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 55764
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • TRF without regeneration; 2 AF stage(s); Neutrodyne
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 2 taps: 105; 120=110 to 130 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Silvertone 108 8-Tube Neutrodyne Order= 57DM 1080 or 1082 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 22 x 7.375 x 11.5 inch / 559 x 187 x 292 mm
  • Notes

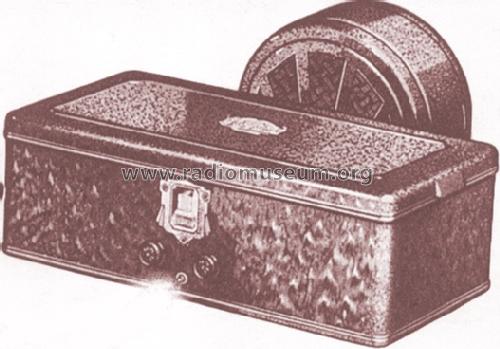

  • The Sears Silvertone 108 8-Tube Neutrodyne has a single illuminated tuning dial. The metal cabinet has a dark, rich bronze crystalline finish. For schematic, see Rider's 6-2 or Sears Silvertone Radios-Service Information 1928 thru 1936.
    This model was manufactured for Sears by Colonial Radio Corp., Buffalo, NY (Sears Manufacturer Code 101).
    Order number 57DM 1080 1/4 without tubes or accessories for $ 41.50 (57DM 1081 1/4 for easy payment) or 57DM 1082 1/4 with all tubes, loudspeaker 13" 57DM4833 and aerial and ground equipment for 61 or as 57DM 1083 1/4 for easy payment: $ 10 "down" cash and $ 6.50 per month until paid $ 67. See details and summaries about Sears catalogs etc.
  • Price in first year of sale
  • 41.50 $ +
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 6 = 1935 and before
