• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56547

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

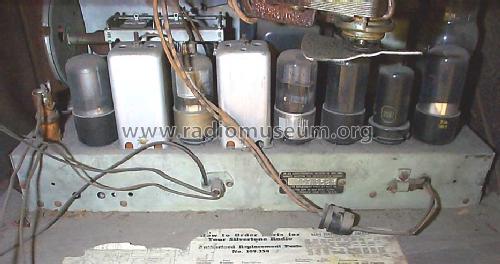

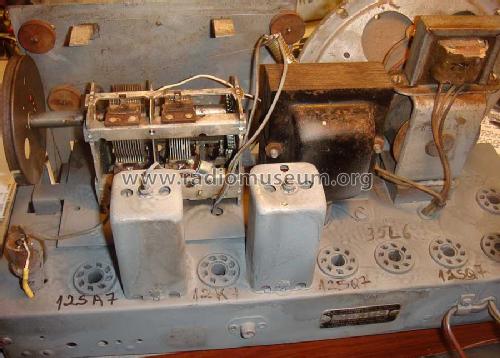

• Valves / Tubes
• 12SA7GT 12K7GT 12SQ7GT 12SQ7GT 35L6GT 35L6GT 35Z6G

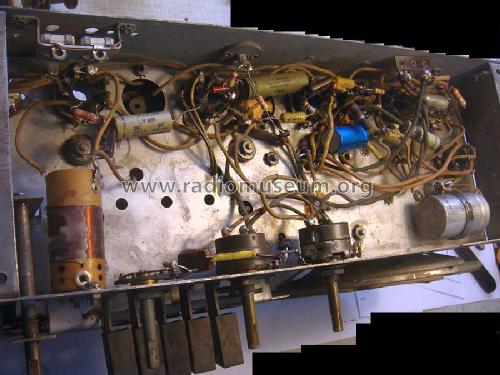

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details

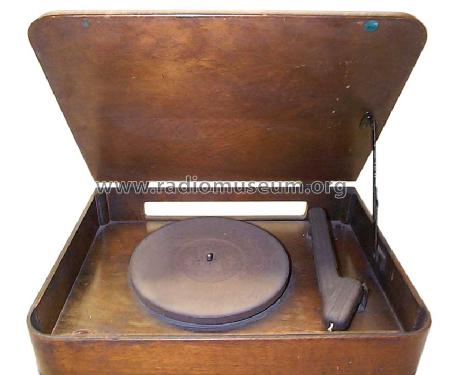

• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

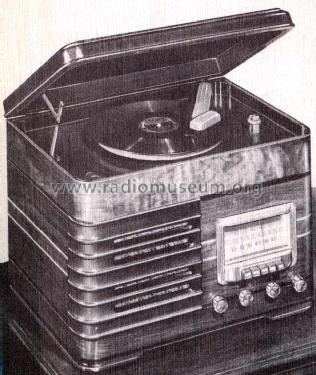

• Model: Silvertone Order= 57F 5771 Ch= 109.358 - Sears, Roebuck & Co.; Chicago

• Shape

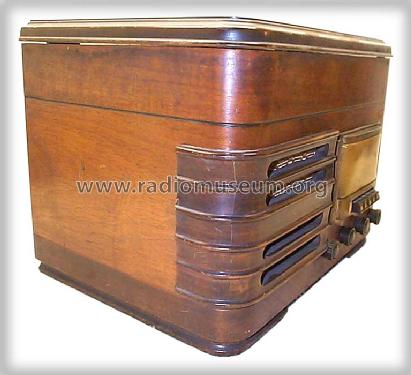

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 16.5 x 12 x 12.75 inch / 419 x 305 x 324 mm

• Notes

• Built in loop antenna.

• Net weight (2.2 lb = 1 kg)
• 23 lb (23 lb 0 oz) / 10.442 kg

• Price in first year of sale
• 29.95 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Table Top Radios Vol. 4 Stein 2003

• Literature/Schematics (1)
• Riders 12-51, 52

• Literature/Schematics (2)
• The Sears Silvertone Catalogs 1930-1942 (page 198)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (#181, Fall & Winter 1940/41, page 620.)
