Silvertone Order= 57F 6541 Ch= 110.401 portable
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56892
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 90 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

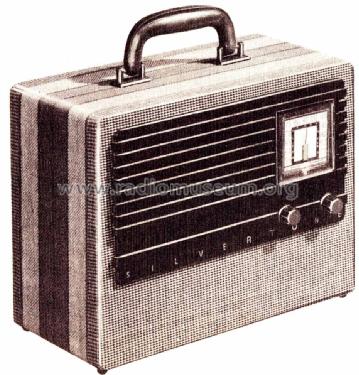

- Model: Silvertone Order= 57F 6541 Ch= 110.401 [portable] - Sears, Roebuck & Co.; Chicago
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11.75 x 9.25 x 5.75 inch / 298 x 235 x 146 mm
- Notes
-
Built in loop antenna. Tuning Band 530 to 1730 kc.
- Net weight (2.2 lb = 1 kg)
- 14.25 lb (14 lb 4 oz) / 6.470 kg
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (1)
- Riders 12-59
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 205)
- Literature/Schematics (3)

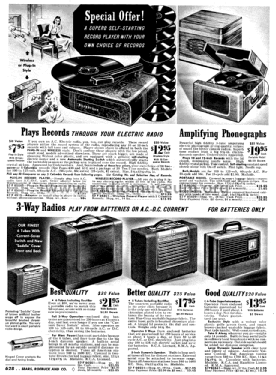

- Sears, Roebuck Catalogs (Silvertone) (#181, Fall & Winter 1940/41, page 628.)
