• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57103

• • Brand: Silvertone

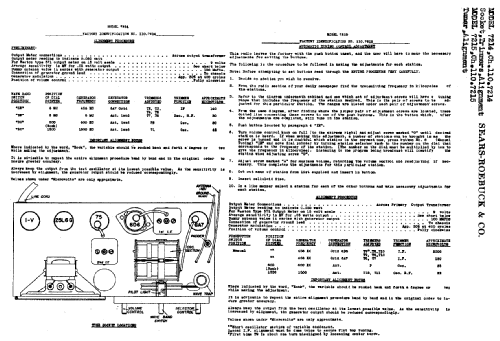

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D7 75 25L6G 25Z5 M49HG

• Main principle
• ZF/IF 465 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Power out
• 1.6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

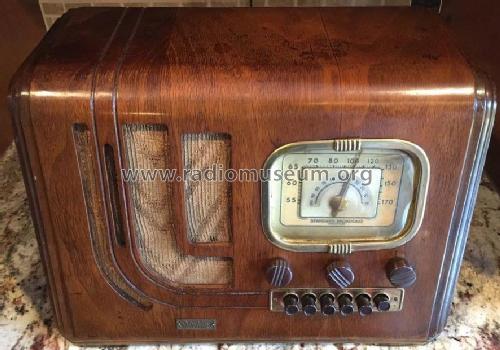

• Model: Silvertone 7215 Ch= 110.7215 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Push Buttons.

• Notes
• 6 preset buttons, Utah loudspeaker.

• External source of data
• Ernst Erb

• Literature/Schematics (1)
• Rider's Perpetual, Volume 10 = 1939 and before (Riders 10-102, 110)
