Silvertone De Luxe Order= 57EM1150C or 1151C
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 55776
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- TRF without regeneration; Screengrid 1926-1935
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone De Luxe Order= 57EM1150C or 1151C - Sears, Roebuck & Co.; Chicago
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 14.75 x 16.5 x 7.625 inch / 375 x 419 x 194 mm
- Notes
- The Sears Silvertone De Luxe All-Electric with a "Push-pull output and full size dynamic speaker has genuine walnut cabinet, beautiful "Tarso" process decorated front with a reproduction in natural colors of rich inlaid marquetry." The model could be ordered for 25 cycle mains for the same price (with a bigger transformer and some changes in the power unit). It has the same chassis/schematic as 1140 and 1141 ( Rider's 2-1 and 2-2) and Rider's volume 2 shows on page 524 to 524-3 the same - with a bit different wiring between 1150 and 1170 models.
Order number 57EM1150C 1/4 without tubes or accessories for $ 38.50 or 57EM1151C 1/4 with all tubes, batteries, batterie tester and aerial for $ 49.50 or for easy payment: $ 5 "down" cash and $ 5 per month until paid $ 54.50 as 57EM1151T 1/4 (57EM1150T without tubes). In catalog #163 it is 57FM1250C 1/4 for now $ 29 or complete 57FM1251C for $ 34.90 (16.75" x 15" x 8"). See details and summaries about Sears catalogs etc.
- Price in first year of sale
- 38.50 $ +
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932

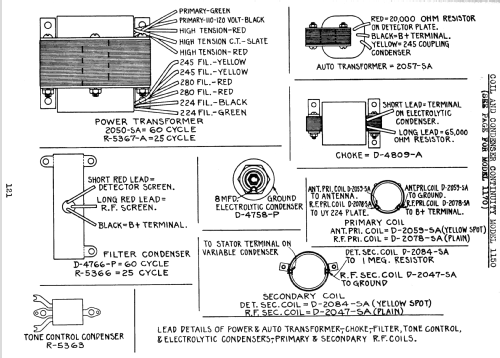

- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Mentioned in
- The Radio Collector's Directory and Price Guide 1921 - 1965 (The compl. PriceG.TTR4 Stein 03)
- Literature/Schematics (1)
- The Sears Silvertone Catalogs 1930-1942 (page 34 and 39)
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (#162, Spring & Summer 1931, page 492 and #163 Fall & Winter 1931/32, page 215)
- Literature/Schematics (3)
- Cathedral & Tombstone Radios (page 235.)
