Silvertone 1320C Order= 57FM 1321C or 1320C

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1931/1932
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 55825
    • Brand: Silvertone

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 1320C Order= 57FM 1321C or 1320C - Sears, Roebuck & Co.; Chicago
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 26 x 44 x 13.75 inch / 660 x 1118 x 349 mm
  • Notes

  • The Sears Silvertone Superheterodyne model 1320C as a 4-legged Low-Boy with stretcher base has rich Butt walnut doors. "Top rail and apron of burl walnut with striped inverted walnut side rails. Side front panels of sliced quarter striped walnut." The model could be ordered for 25 cycle mains for the same price (with a bigger transformer and some changes in the power unit).

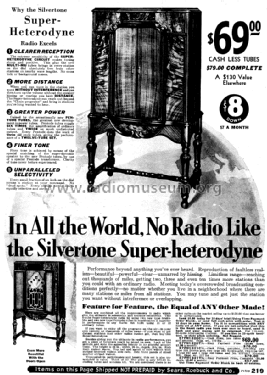

    Order number 57FM1320C 1/4 without tubes for $ 69 or as 57FM1321C with tubes and antenna kit 57F5517 for $ 79 - or for easy payment 57FM1321T: $ 9 "down" cash and $ 8 per month until paid $ 87. See details and summaries about Sears catalogs etc.

  • Price in first year of sale
  • 69.00 $ +
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
