Silvertone 3441 Ch= 132.805 ,(-1A),(-1B) Late
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 55640
-
- Brand: Silvertone

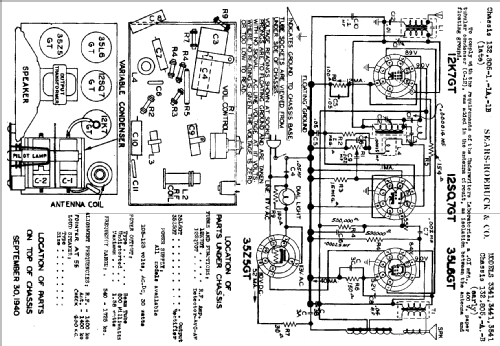

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Silvertone 3441 Ch= 132.805 ,, [Late] - Sears, Roebuck & Co.; Chicago
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (1)
- Riders 12-33
