• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56573

• • Brand: Silvertone

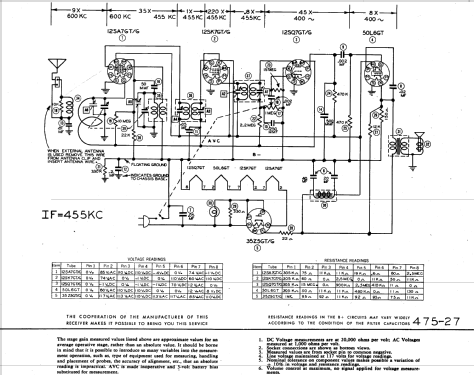

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 6012 Ch= 132.816A - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes
• Color=Ivory

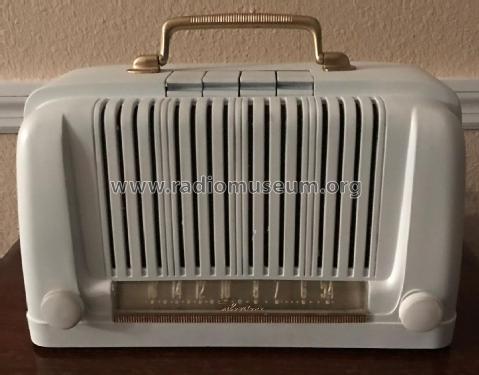

  The silvertone model 6012 is an AC-DC operated Superheterodyne with Loop Antenna and Pushbutton Tuning. The chassis number 132.816A tells us the manufacturer: Noblitt-Sparks Ind., Inc (Arvin) Columbus, IN.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)

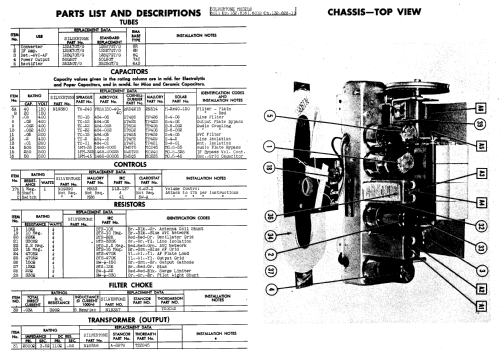

• Photofact Folder, Howard W. SAMS (Date: Mar 1947, Set 15, Folder 475-27)
