• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56602

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7GT 12SA7GT 14R7 12SK7GT 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

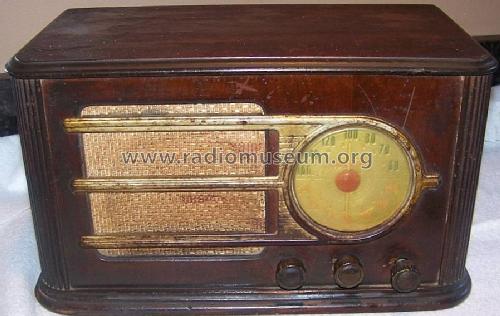

• Model: Silvertone 6050 Ch= 132.825-1 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, low profile (big size).

• Notes
• Electrical changes on this chassis, see schematic.

• External source of data
• Ernst Erb

• Source of data
• Machine Age to Jet Age III

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before
