Silvertone 6050 Ch= 132.825-4
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56603
-
- Brand: Silvertone
Beitman
SAMS Photofact

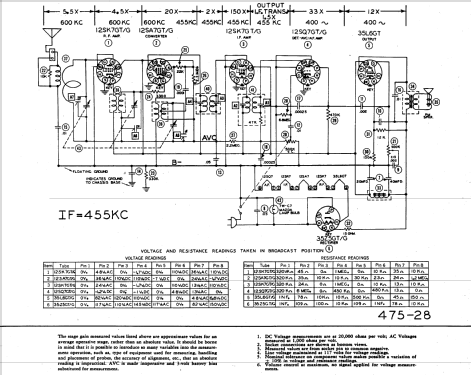

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 6050 Ch= 132.825-4 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Notes
- Electrical changes was made on this chassis, for details see schematic.
- External source of data
- Ernst Erb
- Source of data
- Machine Age to Jet Age III
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
