Silvertone 8021 Ch= 132.868 Unrevised

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1948/1949
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 57191
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / 105 - 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 8021 Ch= 132.868 [Unrevised] - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 14.25 x 8.375 x 8.1875 inch / 362 x 213 x 208 mm
  • Notes

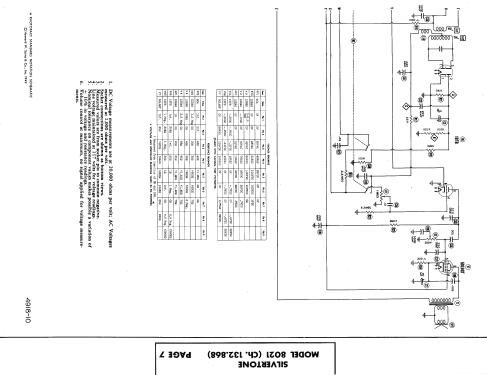

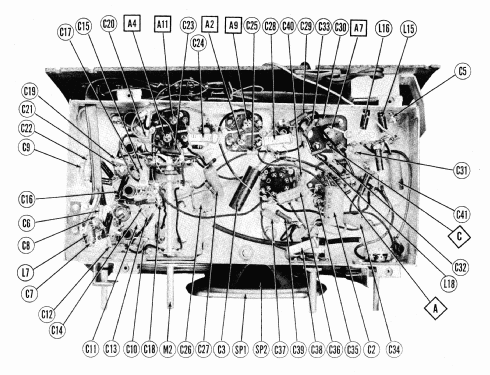

  • The Silvertone model 8021 from Sears, Roebuck & Co. with chassis 132.686 had been changed in the schematic (Resistors R20 = now 33 kohms instead of 100 k, added R28 100 kohms and R29 15 ohms) to improve the FM tuning characteristics. There were complaints of poor tuning characteristics. The model has a Diode Rectifier and a loop antenna. The Photofact date 9-49, 4918-10, set 70, folder 10 shows the schematic without revision. See the other model page "Revised".

    See also Silvertone model 8021 Ch= 132.868 Revised

  • Price in first year of sale
  • 44.95 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 20 covering 1950
