• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1949–1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 55722

• • Brand: Silvertone

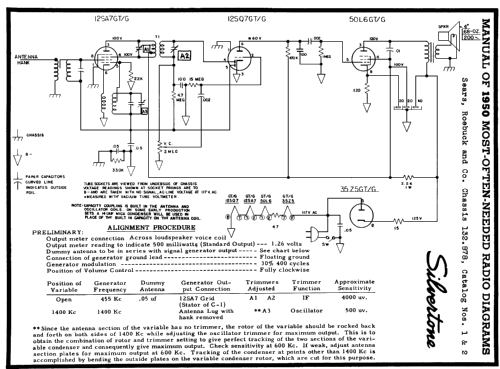

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

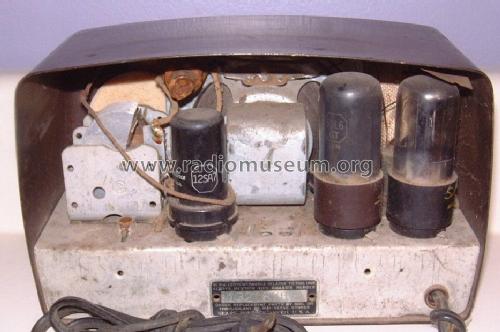

• 12SA7GT 12SQ7GT 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

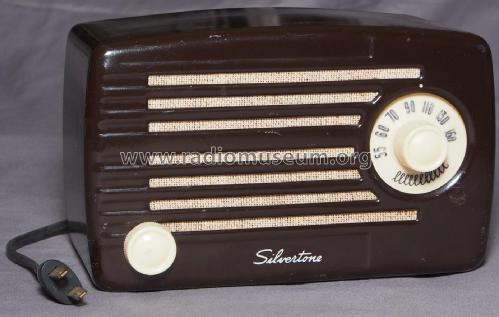

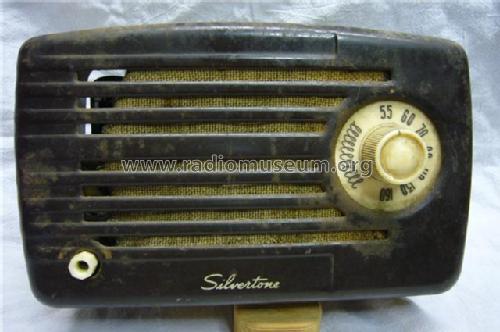

• Model: Silvertone 1 Ch= 132.878 Order=57D 01 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 7.75 x 5.125 x 4 inch / 197 x 130 x 102 mm

• Notes

• The Silvertone models 1 (color Brown) and 2 (color Ivory) AC-DC operated superheterodyne receivers with chassis 132.878 are supplied by Sears, Roebuck And Co., 925 S. Homan St., Chicago, Illinois.

• Price in first year of sale
• 9.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 21, Copyright 1950

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 10, 1950 (SAMS Photofact, date 7-50, set 101, folder 10)

• Literature/Schematics (2)
• Table Top Radios Vol. 1 Stein 98 (page 142.)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (#200, Spring & Summer 1950, page 605. Spring & Summer 1951, page 646.)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Mid-Season/Fall 1951, page 289.Fall/Winter 1950, page 740. Fall/Winter 1951, page 796.)
