Silvertone 8-Tube Superheterodyne Order= 57DM 1713
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 55916
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- 31_Ballast
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Storage and/or dry batteries / 135 & 2-3 & 6 & -4.5 & -1.5 & -4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 inch = 19.6 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 8-Tube Superheterodyne Order= 57DM 1713 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 24 x 39.3 x 14.3 inch / 610 x 998 x 363 mm
- Price in first year of sale
- 56.00 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Mentioned in
- The Sears Silvertone Catalogs 1930-1942 (page 70)
- Literature/Schematics (1)

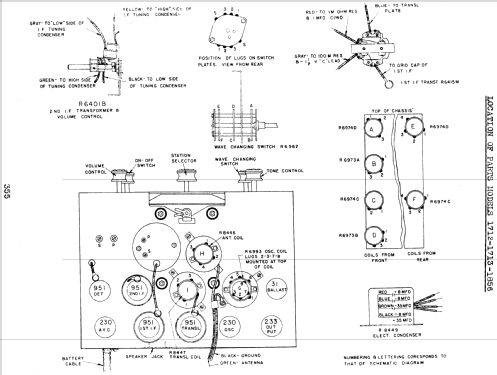

- Riders 4-18, 19
- Literature/Schematics (2)

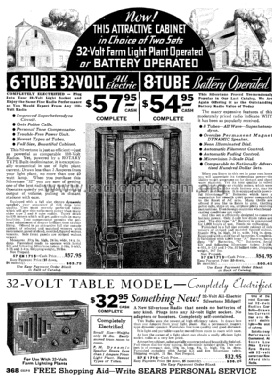

- Sears, Roebuck Catalogs (Silvertone) (#167, Fall & Winter 1933/34, page 631. #168, Spring & Summer 1934, page 368.)
