Silvertone 5-Tube Order= 57F 1855
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 55992
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 32 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 5-Tube Order= 57F 1855 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 12 x 13.5 x 7.75 inch / 305 x 343 x 197 mm
- Notes
- Farm radio. Vibrator for +B.
- Price in first year of sale
- 29.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Mentioned in
- The Sears Silvertone Catalogs 1930-1942 (page 78)
- Literature/Schematics (1)
- Machine Age to Jet Age II (Riders 5-45, 46 ; 7-6)
- Literature/Schematics (2)
- Cathedral & Tombstone Radios (page 240.)
- Literature/Schematics (3)

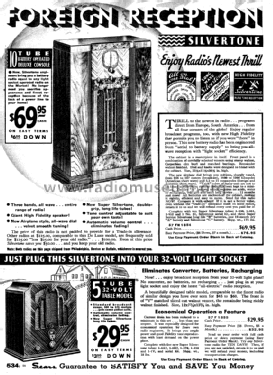

- Sears, Roebuck Catalogs (Silvertone) (# 169, Fall & Winter 1934/35, page 534.)
