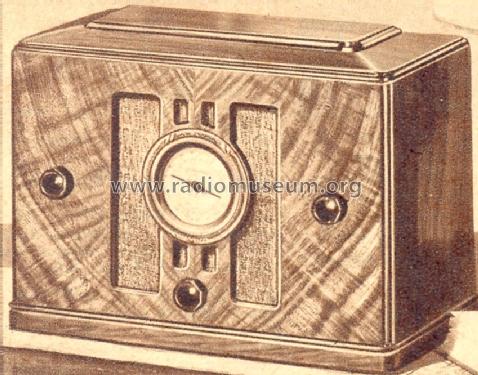

Silvertone Order= 57K 1903 early
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56003
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57K 1903 [early] - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11 x 7.9 x 5.5 inch / 279 x 201 x 140 mm
- Price in first year of sale
- 18.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- The Sears Silvertone Catalogs 1930-1942 (page 91)
- Literature/Schematics (1)
- Machine Age to Jet Age II (Riders 7-11)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 171, Fall & Winter 1935/36, page 537.)
