Silvertone 1909
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56014
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 50 to 60 cycles, 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 1909 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 14 x 16.25 x 11 inch / 356 x 413 x 279 mm
- Notes
-
Same schematic as models 1942,1944 and 1972 except without tube 6E5 and minor electrical changes.
- External source of data
- Ernst Erb

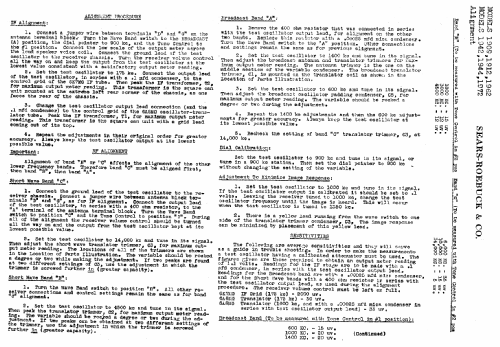

- Literature/Schematics (1)
- Rider's Perpetual, Volume 7 = 1936 and before (Riders (Sears) 7-15, 16)
