Silvertone Order= 57K 1925 early, late
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56031
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Direct Current supply (DC) / 32 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57K 1925 [early, late] - Sears, Roebuck & Co.; Chicago

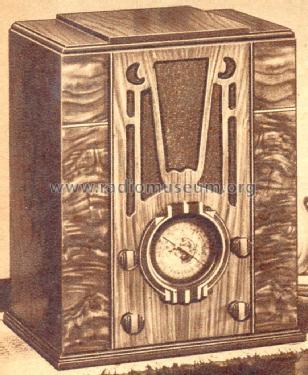

- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 11.5 x 15.3 x 8 inch / 292 x 389 x 203 mm
- Notes
- Farm radio. Minor electrical changes between early and late model.
- Price in first year of sale
- 29.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- The Sears Silvertone Catalogs 1930-1942 (page 90, 99)
- Literature/Schematics (1)
- Table Top Radios Vol. 4 Stein 2003 (Riders 7-28, 29)
- Literature/Schematics (2)
- Cathedral & Tombstone Radios (page 240.)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 171, Fall & Winter 1935/36, page 536. # 172, Spring & Summer 1936, page 545.)
