Silvertone Order= 57LM 1946 Ch= 388 Early
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56057
-
- Brand: Silvertone

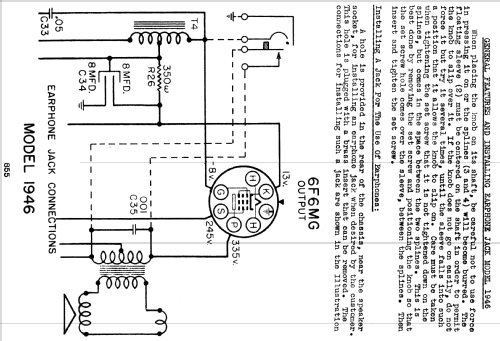

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage; ZF/IF 385 kHz
- Tuned circuits
- 10 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57LM 1946 Ch= 388 [Early] - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 24 x 38.5 x 13.2 inch / 610 x 978 x 335 mm
- Notes
- Minor electrical changes between early and late model.
- Price in first year of sale
- 77.50 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)
- Riders 7-12, 39, 40
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 103)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 172, Spring & Summer 1936, page 547.)
