Silvertone 1955 Early and Late
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56069
-
- Brand: Silvertone

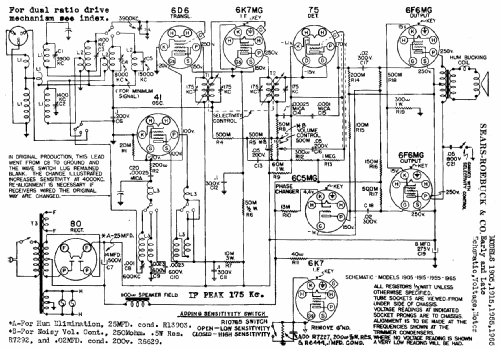

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 1955 Early and Late - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 15 x 18 x 11 inch / 381 x 457 x 279 mm
- Notes
-

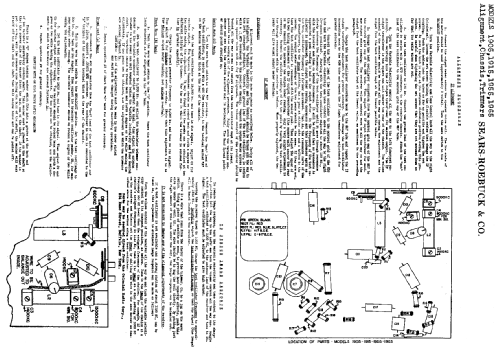

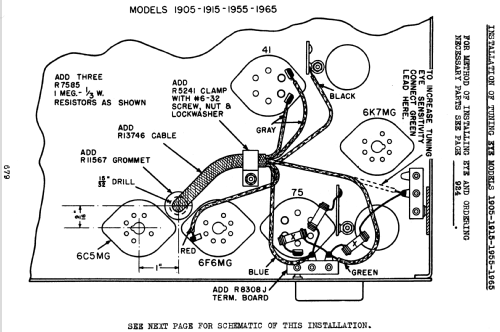

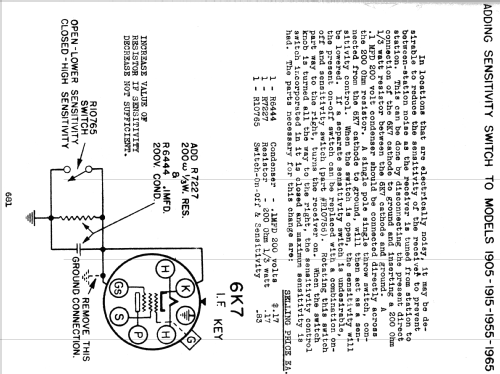

Silvertone 1955 Early and Late: Rider's Sears page 7-13 shows the same schematic and on 7-14 alignment for models 1905, 1915, 1955 and 1965 for "Early and Late". We show also the 17 Sears original technical pages where can be found the schematic for "Original" and "Revised". That may be the difference - and: "Earlier production uses glass and the intermediate or "G" type of tube, later production uses some metal or MG tubes."
Page 7-12 shows details of the "Dual condenser drive shaft" for the models named, plus 1917, 1967, 1967A, 1918, 1968, 1918A, 1968A, 1936, 1996 and drive data for models 1945 and 1946.
See details and summaries about Sears catalogs etc.
- External source of data
- Ernst Erb
- Source of data
- Machine Age to Jet Age III
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- Cathedral & Tombstone Radios (page 243.)
- Literature/Schematics (1)
- Riders 7-12, 13, 14
- Other Models
-
Here you find 5479 models, 3211 with images and 4185 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
Collections
The model Silvertone 1955 Early and Late is part of the collections of the following members.
