Silvertone 1970

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56085
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 120 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 1970 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Console with any shape - in general
  • Notes

  • The Sears Silvertone 1970 is an AC operated 7 tube BC and SW band receiver.  Some models may have a tuning eye installed which was not in the original production release of this model. New IF transformers were available after the production of this model which improved the selectivity, with these transformers being made available for installation into this model.

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Corona Radio and Television Corp., Chicago, Ill (Sears Manufacturer Source Number Code 104).

  • External source of data
  • Ernst Erb

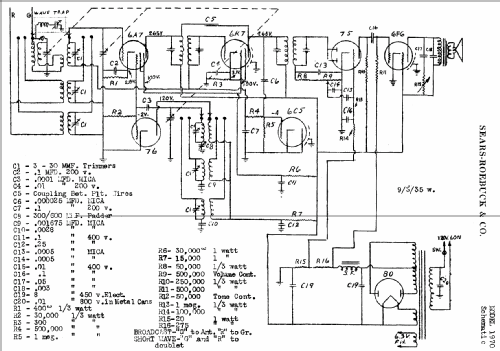

  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
