Silvertone Order= 57HM 2011 Ch= 101.642
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56121
-
- Brand: Silvertone

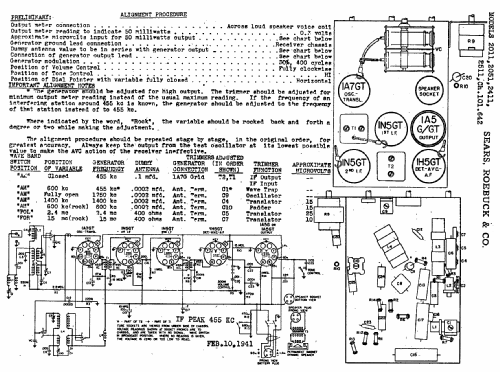

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Storage and/or dry batteries / 90 & 1.4 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57HM 2011 Ch= 101.642 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 27.5 x 33.5 x 11.75 inch / 699 x 851 x 298 mm
- Notes
-
This Silvertone model is sold less batteries. The Silvertone model 2111 is with 800-hour dry A-B PowerPack battery and the Silvertone model 2211 is with storage "A" and two dry "B" batteries.
- Price in first year of sale
- 29.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)
- Riders 13-6
- Literature/Schematics (3)

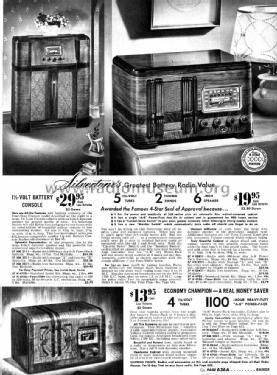

- Sears, Roebuck Catalogs (Silvertone) (#182, Spring & Summer 1941, page 636A.)
