Silvertone 2551 Order= 57F 2551 Ch= 101.604
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56147
-
- Brand: Silvertone

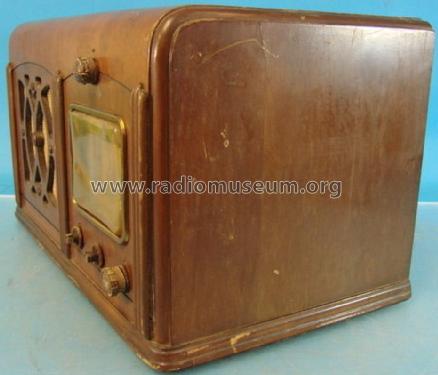

With courtesy by Ebayseller glassteddyboy3
With courtesy by Ebayseller glassteddyboy3
With courtesy by Ebayseller glassteddyboy3
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 90 & 1.4 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 2551 Order= 57F 2551 Ch= 101.604 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 17 x 10.25 x 10.125 inch / 432 x 260 x 257 mm
- Notes
-
This model was sold without any batteries. Broadcast 540 to 1700 kc. See also Silvertone model 2551, model 2751 or model 2651.
- Price in first year of sale
- 15.65 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (1)
- Riders 12-25, 26
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 201)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#181, Fall & Winter 1940/41, page 623.)
