Silvertone Order= 57DM 4445
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56273
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 135 & 2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 0.66 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57DM 4445 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 21.5 x 37 x 11.5 inch / 546 x 940 x 292 mm
- Notes
- The Silvertone model 4445 is the same as model 4444, except that this model 4445 is using a 2 Volt "A" storage battery with plug adaptor instead of the 1N1 automatic battery economizer. For details see schematic.
- Price in first year of sale
- 44.50 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- The Sears Silvertone Catalogs 1930-1942 (page 105)
- Literature/Schematics (1)
- Riders 7-55, 56
- Literature/Schematics (3)

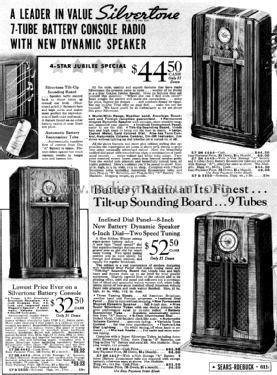

- Sears, Roebuck Catalogs (Silvertone) (# 173, Fall & Winter 1936/37, page 611.)
