Silvertone Order= 57DM 4449
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1936–1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56279
-
- Brand: Silvertone

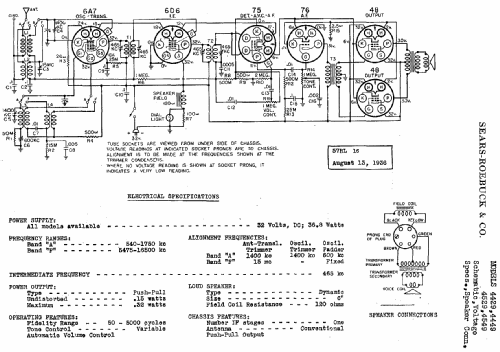

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Direct Current supply (DC) / 32 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 0.4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57DM 4449 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 20.3 x 36 x 10.9 inch / 516 x 914 x 277 mm
- Notes
- Farm Radio.
- Price in first year of sale
- 38.50 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)
- Riders 9-11, 12, 13
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 106, 117, 133)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#173, F & W 1936/37, page 612. #174, S & S 1937, page 433. #175, F & W 1937/38, page 665.)
