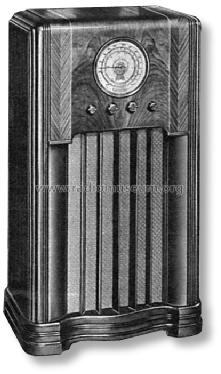

Silvertone 8-Tube Console Order= 57EM 4455
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56283
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Storage and/or dry batteries / 2 x 45 & 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 8-Tube Console Order= 57EM 4455 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 21.625 x 38 x 10.75 inch / 549 x 965 x 273 mm
- Notes
- The Silvertone model 4455 is the same as model 4456 but this model 4455 uses dry batteries only and the model 4456 uses a 4 volt storage battery for the heaters. For details see schematic. The tuning bands are broadcast 545 to 1720 kHz, short waves 2.2 to 6.5 MHz and 6 to 18 MHz.
- Price in first year of sale
- 42.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)
- Riders 8-28, 29
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 118)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 174, Spring & Summer 1937, page 434.)
