Silvertone Order= 57DM 4485 Ch= 101.410
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56300
-
- Brand: Silvertone

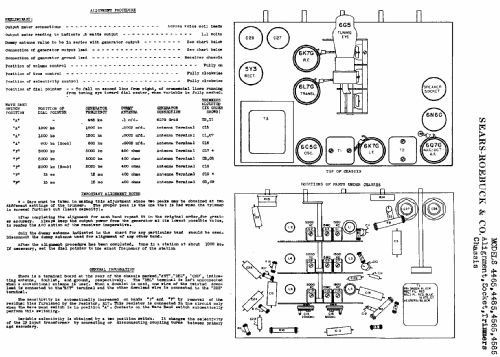

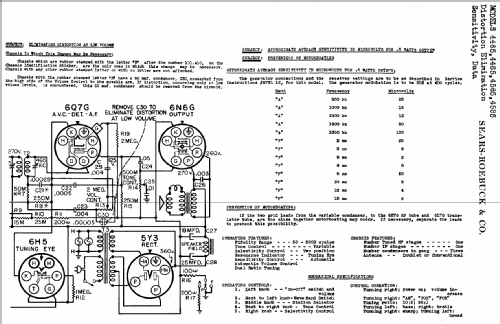

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 9.3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57DM 4485 Ch= 101.410 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 21.5 x 37 x 11.5 inch / 546 x 940 x 292 mm
- Price in first year of sale
- 42.50 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Pre-War Consoles (Riders 8-35, 36, 37, 38)
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 110, 115)
- Literature/Schematics (3)

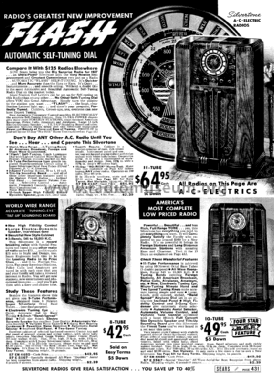

- Sears, Roebuck Catalogs (Silvertone) (# 173, Fall & Winter 1936/37, page 616. #174, Spring & Summer 1937, page 431.)
