• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1936 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56326

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1C6 1A4 951 1F4

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 90 & 67.5 & 2 or 3 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 6 inch = 15.2 cm

• Power out
• 0.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

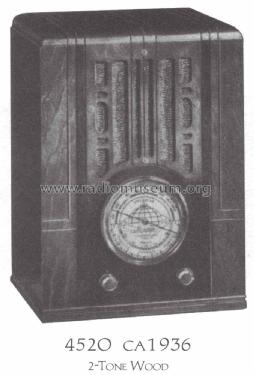

• Model: Silvertone 4520 Ch= 101.414 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 11.6 x 16.2 x 9.1 inch / 295 x 411 x 231 mm

• Notes
• A Battery = 3V Dry or 2V storage battery.

• External source of data
• Ernst Erb

• Source of data
• Machine Age to Jet Age II

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Cathedral & Tombstone Radios (page 246.)

• Literature/Schematics (1)
• Riders 7-49, 50

• Other Models

• Here you find 5486 models, 3218 with images and 4192 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
