Silvertone 4532
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56338
-
- Brand: Silvertone

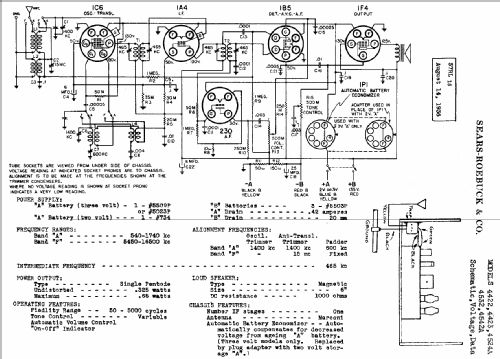

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 135 & 2 or 3 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic. / Ø 6 inch = 15.2 cm
- Power out
- 0.65 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 4532 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Notes
- A Battery = 3V Dry battery + 1P1 Ballast or 2V Storage battery + adaptor.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Mentioned in
- Machine Age to Jet Age II
- Literature/Schematics (1)
- Riders 8-22, 23, 24
