• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56364

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6K7G 6C5G 6L7G 6K7G 6G5 6Q7G 6C5G 6F6G 6F6G 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 10 inch = 25.4 cm

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

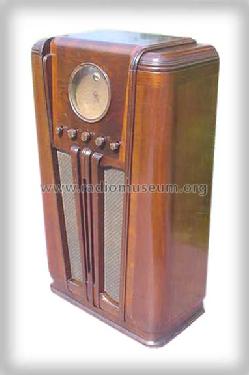

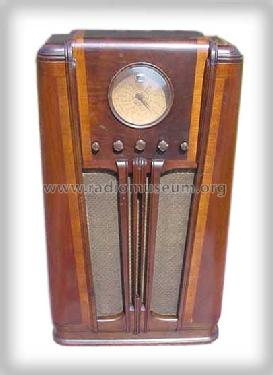

• Model: Silvertone 4586 [Early] - Sears, Roebuck & Co.; Chicago

• Shape
• Console with any shape - in general

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Mentioned in
• Pre-War Consoles

• Literature/Schematics (1)
• Riders 8-42, 43, 44
