Silvertone Order= 57FM 4643 or 4696 or 4697 Ch= 100.157
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56422
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 0.55 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57FM 4643 or 4696 or 4697 Ch= 100.157 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Notes
- Farm radio. Sync. vibrator for +B. Speaker 6 or 8 inch.
- Price in first year of sale
- 37.95 $
- External source of data
- Ernst Erb
- Source of data
- Pre-War Consoles
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Literature/Schematics (1)
- Riders 9-47, 48
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 128, 143)
- Literature/Schematics (3)

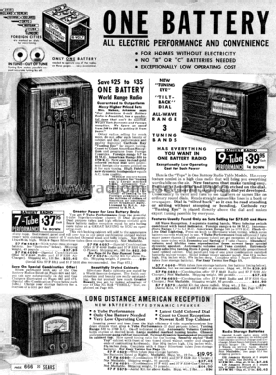

- Sears, Roebuck Catalogs (Silvertone) (# 175, Fall & Winter 1937/38, page 666. #176, Spring & Summer 1938, page 471.)
