Silvertone Order= 57FM 4666 Ch= 101.483
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56435
-
- Brand: Silvertone
By courtesy of "antiqueradios.com"!
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 8 inch = 20.3 cm
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

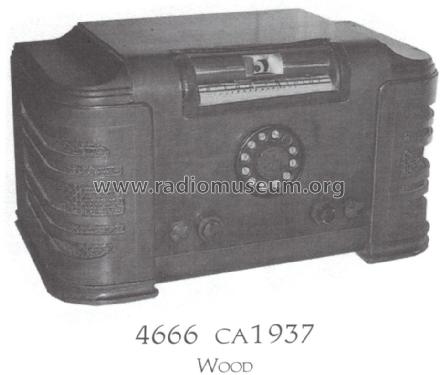

- Model: Silvertone Order= 57FM 4666 Ch= 101.483 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 22.375 x 13.375 x 12.5 inch / 568 x 340 x 318 mm
- Notes
- Speaker 6,8,10 or 12 inch. Automatic tuning?
- Price in first year of sale
- 49.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition (Machine Age to J. Vol.2 Stein 1997, page 266.)
- Literature/Schematics (1)
- Riders 14-7, 8
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 124)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 175, Fall & Winter 1937/38, page 657.)
