Silvertone Order= 57HM 4677 Ch= 101.498
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56439
-
- Brand: Silvertone

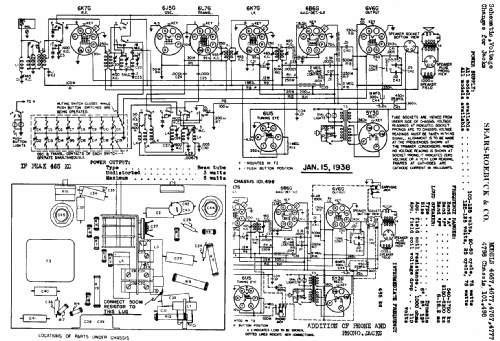

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

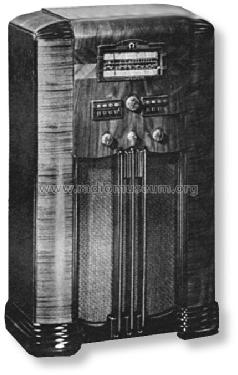

- Model: Silvertone Order= 57HM 4677 Ch= 101.498 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 22 x 37 x 11.25 inch / 559 x 940 x 286 mm
- Notes
- Speaker 6, 8 or 12 inch.
- Price in first year of sale
- 49.50 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)
- Riders 10-8, 11, 12, 13
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 139)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#176, Spring & Summer 1938 page 465.)
