Silvertone 4740 Ch= 101.476
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56460
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 1.6 W (unknown quality)
- from Radiomuseum.org

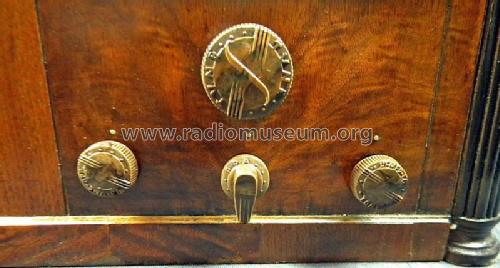

- Model: Silvertone 4740 Ch= 101.476 - Sears, Roebuck & Co.; Chicago
- Notes
- Farm radio. Sync. vibrator for +B. Speaker 6 or 8 inch.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Literature/Schematics (1)
- Riders 9-49, 50
