• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56468

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K7G 6A8G 6K7G 6B6G 6U5 6V6G 6X5G

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3.3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

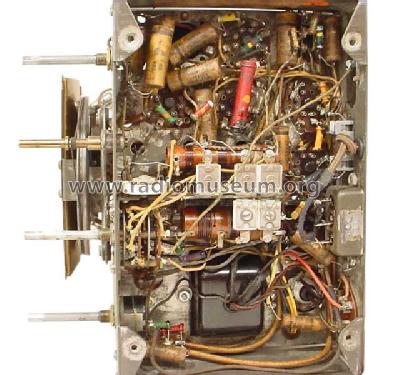

• Model: Silvertone 4764 Ch= 101.480 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Literature/Schematics (1)
• Riders 9-51, 52
