Silvertone 5008 Ch= 132.83601 Order=57A 5008
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1964/1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 93316
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 5008 Ch= 132.83601 Order=57A 5008 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 15 x 6 x 5 inch / 381 x 152 x 127 mm
- Notes
-
12BA6 RF preamp is tuned at the input and output with a 3 gang tuning capacitor. Unusual Hum bucking 12k resistor from Bplus to 35C5 120R cathode resistor.
Char brown/ivory cabinet. Same model in Light gray-green/ivory: model 5009.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 25, 1965
- Literature/Schematics (4)

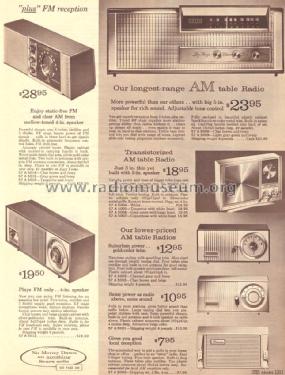

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1965, page 1311.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
- Other Models
-
Here you find 5478 models, 3209 with images and 4184 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
Forum contributions about this model: Sears, Roebuck & Co.: Silvertone 5008 Ch= 132.83601 Order=57A 5008
Threads: 1 | Posts: 2
Fellow Radiophiles,
I came across this above-average 6 tube AC/DC set at ebay auction 260391674867 by seller collect-m-all.
This set has an unsual 12k resistor from Bplus to the 120R resistor at the cathode of the 35C5 tube. This resistor couples an ammount of hum into the cathode that cancels the hum presented by Bplus at the plate via the output transformer.
This is yet another hum-bucking scheme that makes use of limited bypass capacitance to achieve very low hum output. I made a recent post about about hum bucking. A search for "Brumm" or "Brummkompensation" will yield several hits in the German forum, which I have read with Google-translate.
Note the three section Electrolytic filter capacitor with 330 Ohm resistors for high order filtering. This is also an extra hum reducing measure.
This set also has an unusual RF transformer loading the 12BA6 RF preamp. The primary is fixed-tuned with a 100pF capacitor, and is (over-?)coupled to the secondary with a 2.2pF capacitor, which is tuned.
The primary must have a Q not much greater than 2 if it is to cover the AM band. Perhaps the operation of this transformer is somewhat similar to antenna coupling transformers found in sets with a wire antenna connection, except that the antenna transformer primaries usally have a loosely coupled untunned high impedance.
Any further insight on the RF output transformer would be appreciated.
Regards,
-Joe
Joe Sousa, 21.Jan.10
