Silvertone 5039 Ch= 528.63101 Order=57A 5039
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1964/1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 93322
-
- Brand: Silvertone

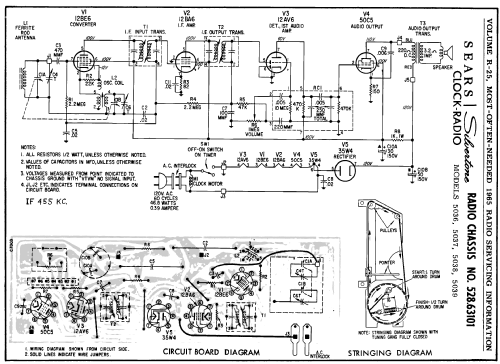

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 5039 Ch= 528.63101 Order=57A 5039 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 12 x 7 x 4 inch / 305 x 178 x 102 mm
- Notes
-
Pink/ivory cabinet.
Light beige/ivory cabinet: model 5036
Ivory cabinet: model 5037
Gray-green/ivory cabinet: model 5038
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 25, 1965
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Spring & Summer 1965, page 1312.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
