Silvertone 5045 High Fidelity Ch=528.34900
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81086
-
- Brand: Silvertone
SAMS

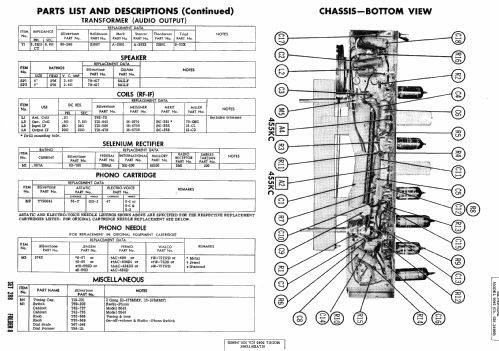

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 5045 High Fidelity Ch=528.34900 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- The Silvertone High Fidelity models 5045 and 5046 with chassis 528.34900 are AC operated radio-phono combinations with a 3 speed automatic record changer, built in loop antenna, Selenium Rectifier and Push-pull output stage. There was a different model in the 60ies with the same model number 5046 but with other chassis which we call "late". The followers of this model here are the models 6045 and 6046 with the same chassis - but without the plate for "High Fidelity". Please be careful by uploading pictures to which model you post them.
- Source of data
- Beitman Radio Diagrams, Vol. 15, 1955
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-55, set 288, folder 8)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
