Silvertone 53 Ch= 528.53780 Order=57K 53L
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1959/1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 144663
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: Silvertone 53 Ch= 528.53780 Order=57K 53L - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 17 x 9 x 21 inch / 432 x 229 x 533 mm
- Notes
- AC operated AM receiver with stereo record player. Sams photofact set 472 folder 13 date 1-60 features the Silvertone models 51 and 53 as the same schematic.
- Price in first year of sale
- 104.95 $
- Literature/Schematics (1)

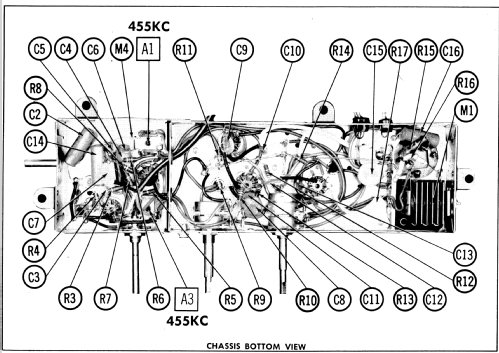

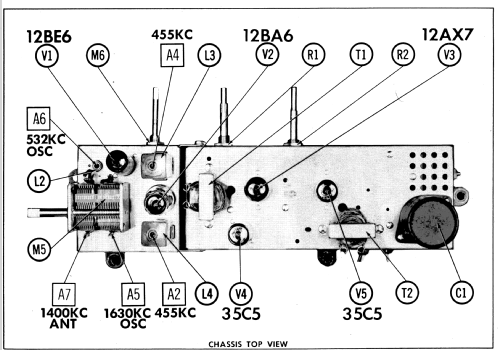

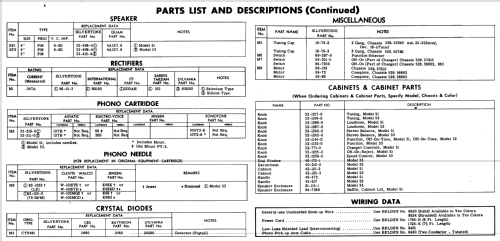

- Photofact Folder, Howard W. SAMS (Set 472 folder 13 date 1-60)
- Literature/Schematics (4)

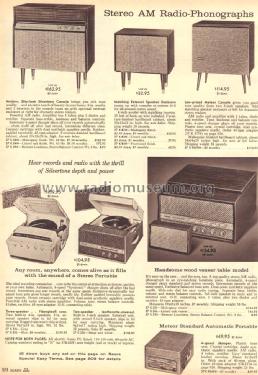

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1960, page 924.)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
